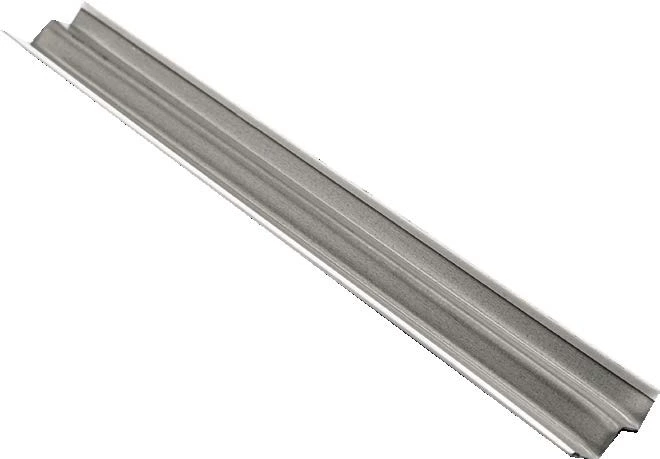

01 / 02Catalogue appearance reference. Confirm finish and connector for your selected specification.
Ceiling grid / SPECIFICATION ENQUIRY
W Wall Angle.
Five four-part dimension references for ceiling perimeter enquiries. Share a section drawing and the panel or grid detail it must meet.
- Selection
- Exact reference row
- Final specification
- Confirm with drawing
- Sample support
- Freight covered
- Mixed order
- Discuss your list
Dimension strings retain the catalogue order. Individual axes and installation orientation require drawing confirmation.
Framing MOQ: 1,000 pieces. Confirm applicability and allocation for the selected family and mixed order.
Made to your specificationDiscuss dimensions and order requirements.
Samples availableWe cover the sample freight.
Mixed orders supportedDiscuss your product combination.
01 / CATALOGUE SPECIFICATION
Compare the exact reference.
Each row retains its original group. Listed options are not a current stock list or permission to combine every value.
| Catalogue dimension string (mm) | Thickness options (mm) | Length (mm) |
|---|---|---|
| 10×10×10×15 | 0.30 / 0.35 / 0.40 / 0.45 | 3,000–5,000 |
| 15×10×10×20 | 0.30 / 0.35 / 0.40 / 0.45 | 3,000–5,000 |
| 19×9×13×24 | 0.30 / 0.35 / 0.40 / 0.45 | 3,000–5,000 |
| 19×9×9×19 | 0.30 / 0.35 / 0.40 / 0.45 | 3,000–5,000 |
| 20×20×20×20 | 0.30 / 0.35 / 0.40 / 0.45 | 3,000–5,000 |
Dimension strings retain the catalogue order. Individual axes and installation orientation require drawing confirmation.
Confirm the thickness basis, tolerances, coating and complete drawing before an order. Catalogue photographs do not establish technical performance.
02 / ORDER THE RIGHT COMPONENT
Specify a coordinated grid.
Send the details you already know. A drawing or sample can help resolve the remaining dimensions before an order is confirmed.
Share your requirements ↗- 01
Choose the exact reference
Dimension strings retain the catalogue order. Individual axes and installation orientation require drawing confirmation.
- 02
Share the matching requirement
Provide a dimensioned section, matching panel or profile, finish and any project-specific requirements.
- 03
Separate quantities and packing
List the quantity and unit for each item, destination country and any OEM or mixed-order request. Leave unknown details for discussion.
03 / ORDER CONFIRMATION
From reference to agreed specification.
Confirm the selected item before approving quantities and shipment arrangements.
Purchasing support
Terms follow the selected product.
- Minimum order
- 1,000 pieces*Confirm family applicability and mixed-order allocation.
- Dispatch target
- Within 20 days*Confirm applicability and start date for the agreed order. Transit time is separate.
- Samples
- Available on requestWe cover sample freight; confirm product, quantity and other sample terms.
- OEM & mixed orders
- Discuss your requirementsProvide drawings and a line-by-line product list for confirmation.
04 / BUYER QUESTIONS
Before you request a quote.
Can I order directly from these catalogue references?
Use them to start an enquiry. The actual supply specification, material, selected combination and current availability must be confirmed before an order.
What needs checking for this family?
Dimension strings retain the catalogue order. Individual axes and installation orientation require drawing confirmation.
Can I request a sample?
Samples are available and we cover sample freight. Confirm the product, destination, quantity and sample terms before dispatch.
Does 20 days include arrival at my destination?
No. The stated period is for dispatch. Confirm the order start date and schedule separately from transport and arrival.
