01 / 02Representative catalogue profile. Final dimensions and finish follow the agreed specification.
Ceiling grid / CEILING SYSTEMS

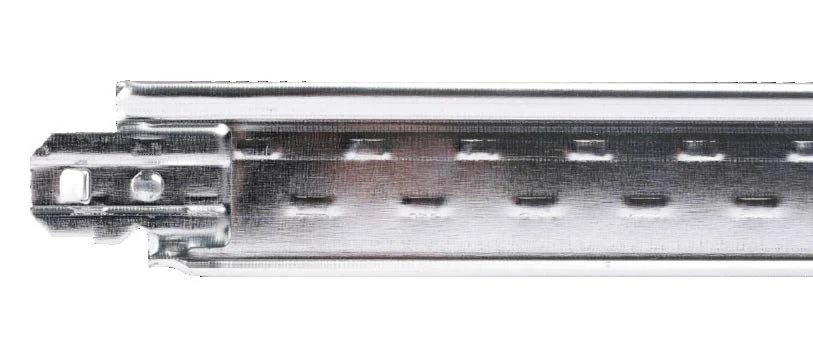

Flat Ceiling T Grid.
Flat-face ceiling T-grid with a 24 mm face width. Specify main tees and cross tees together for your suspended-ceiling order.
- Face width
- 24 mm
- Components
- Main & cross tees
- Main tee length
- 3,000 / 3,600 mm
- Cross tee length
- 600 / 1,200 mm
Listed dimensions are catalogue references, not a stock list. Confirm the exact section or component combination for your order.
Made to your specificationDiscuss dimensions and order requirements.
Samples availableWe cover the sample freight.
Mixed orders supportedDiscuss your product combination.
01 / TECHNICAL DETAILS
Match the components.
Keep main and cross tee requirements separate. On mobile, swipe the component table to view every dimension.
| Component group | Height | Face width | Thickness | Length |
|---|---|---|---|---|
| Main tee · 32 group | 32 | 24 | 0.23 / 0.26 / 0.30 / 0.35 | 3000 / 3600 |
| Cross tee · 32 group | 24 / 26 / 28 / 32 | 24 | 0.23 / 0.26 / 0.30 / 0.35 | 600 / 1200 |
| Main tee · 38 group | 38 | 24 | 0.23 / 0.26 / 0.30 / 0.35 | 3000 / 3600 |
| Cross tee · 38 group | 24 / 26 / 28 / 32 / 38 | 24 | 0.23 / 0.26 / 0.30 / 0.35 | 600 / 1200 |
| Main tee · 47 group | 47 | 24 | 0.23 / 0.26 / 0.30 / 0.35 | 3000 / 3600 |
| Cross tee · 47 group | 38 | 24 | 0.23 / 0.26 / 0.30 / 0.35 | 600 / 1200 |
Cross tees are kept in their original main-tee height groups. Listed options are not interchangeable by default; confirm the selected component and connection.
02 / ORDER THE RIGHT COMPONENT
Specify a coordinated grid.
Send the details you already know. A drawing or sample can help resolve the remaining dimensions before an order is confirmed.
Share your requirements ↗- 01
Select the height group
Recorded main-tee height groups are 32, 38 and 47 mm; cross-tee records are grouped separately.
- 02
Keep the 24 mm face width
The confirmed flat-system records use a 24 mm face width; do not mix it with the narrow series.
- 03
Specify the component
State main tee or cross tee, length, thickness option and quantity in the enquiry.
03 / PRODUCTION & SUPPLY
From profile requirements
to a planned order.
Discuss manufacturing, packaging and mixed-order requirements before confirming your purchase.
Profile forming
Workshop reference. The line and setup for your selected profile are confirmed with your order.
Packaged products
Packaging and storage reference. This photograph does not represent live stock availability.
Purchasing information
The essentials for your first enquiry.
- Minimum order
- 1,000 piecesMixed-order MOQ allocation to be confirmed.
- Dispatch
- Within 20 daysStart date and schedule confirmed with the order; transit time is separate.
- Sample support
- Samples availableWe cover freight. Sample quantity and other terms are confirmed on request.
- OEM & mixed orders
- SupportedShare your customization and product combination.
04 / BUYER QUESTIONS
Before you request a quote.
Can main tees and cross tees be quoted together?
Yes. Identify each component group and quantity so the intended combination can be reviewed.
Are all thickness values available for every component?
The catalogue lists thickness options by group. Ask us to confirm the exact component and selected thickness.
Can I request a sample?
Samples are available and we cover sample freight. Confirm the product, destination, quantity and sample terms before dispatch.
Does 20 days include arrival at my destination?
No. The stated period is for dispatch. Confirm the order start date and schedule separately from transport and arrival.
