01 / 02Representative catalogue profile. Final dimensions and finish follow the agreed specification.
Ceiling grid / CEILING SYSTEMS

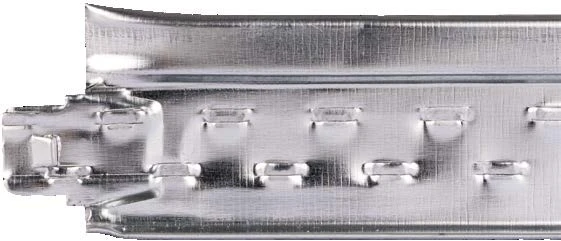

Narrow Flat Ceiling T Grid.
Narrow flat-face ceiling T-grid with a tabulated 14.5 mm face width. Compare main and cross tee options for your ceiling layout.
- Face width
- 14.5 mm
- Components
- Main & cross tees
- Main tee length
- 3,000 / 3,600 mm
- Cross tee length
- 600 / 1,200 mm
Listed dimensions are catalogue references, not a stock list. Confirm the exact section or component combination for your order.
Made to your specificationDiscuss dimensions and order requirements.
Samples availableWe cover the sample freight.
Mixed orders supportedDiscuss your product combination.
01 / TECHNICAL DETAILS
Match the components.
Keep main and cross tee requirements separate. On mobile, swipe the component table to view every dimension.
| Component group | Height | Face width | Thickness | Length |
|---|---|---|---|---|
| Main tee | 32 / 38 | 14.5 | 0.23 / 0.26 / 0.30 / 0.35 | 3000 / 3600 |
| Cross tee | 32 / 38 | 14.5 | 0.23 / 0.26 / 0.30 / 0.35 | 600 / 1200 |
The catalogue illustration says Flat-15; the specification table states 14.5 mm. Use 14.5 mm as the table reference and confirm the required production dimension.
02 / ORDER THE RIGHT COMPONENT
Specify a coordinated grid.
Send the details you already know. A drawing or sample can help resolve the remaining dimensions before an order is confirmed.
Share your requirements ↗- 01
Use the tabulated width
The table records a 14.5 mm face width. The illustration says Flat-15; confirm the production dimension with your order.
- 02
Choose the component
Main tee and cross tee are both recorded with 32 and 38 mm height groups.
- 03
Send the exact request
State component, height, thickness option, length and quantity so the illustration/table difference can be checked.
03 / PRODUCTION & SUPPLY
From profile requirements
to a planned order.
Discuss manufacturing, packaging and mixed-order requirements before confirming your purchase.
Profile forming
Workshop reference. The line and setup for your selected profile are confirmed with your order.
Packaged products
Packaging and storage reference. This photograph does not represent live stock availability.
Purchasing information
The essentials for your first enquiry.
- Minimum order
- 1,000 piecesMixed-order MOQ allocation to be confirmed.
- Dispatch
- Within 20 daysStart date and schedule confirmed with the order; transit time is separate.
- Sample support
- Samples availableWe cover freight. Sample quantity and other terms are confirmed on request.
- OEM & mixed orders
- SupportedShare your customization and product combination.
04 / BUYER QUESTIONS
Before you request a quote.
Is the face width 15 mm or 14.5 mm?
The table records a 14.5 mm face width, while the illustration says Flat-15. Please ask us to confirm the production reference.
Are both main and cross tees available in this family?
Both are recorded. Specify the component and 32 or 38 mm height group in your enquiry.
Can I request a sample?
Samples are available and we cover sample freight. Confirm the product, destination, quantity and sample terms before dispatch.
Does 20 days include arrival at my destination?
No. The stated period is for dispatch. Confirm the order start date and schedule separately from transport and arrival.
