01 / 02Representative catalogue profile. Final dimensions and finish follow the agreed specification.
Steel framing / PROFILE SELECTION

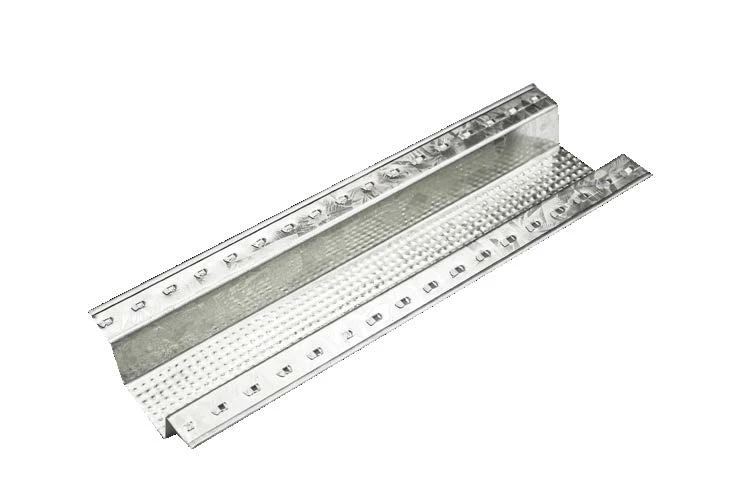

Omega Channel.
Omega-shaped ceiling profiles with two listed sections. Compare the base width, depth and overall width to identify your required profile.
- Listed sections
- 2 combinations
- Overall width · C
- 58 / 64 mm
- Thickness
- 0.3–1.5 mm
- Length
- 2,000–6,000 mm
Listed dimensions are catalogue references, not a stock list. Confirm the exact section or component combination for your order.
Made to your specificationDiscuss dimensions and order requirements.
Samples availableWe cover the sample freight.
Mixed orders supportedDiscuss your product combination.
01 / TECHNICAL DETAILS
Choose your section.
Use the dimensional references to identify the product you need. Include unknown details in your enquiry for discussion.
| A | B | C | Thickness | Length |
|---|---|---|---|---|
| 35 | 15 | 58 | 0.3–1.5 | 2,000–6,000 |
| 38 | 22.5 | 64 | 0.3–1.5 | 2,000–6,000 |
Each row is a separate section reference. Thickness and length ranges do not imply that all combinations are stocked. Confirm thickness basis, coating and tolerances for your order.
02 / ORDER THE RIGHT COMPONENT
Make the profile clear.
Send the details you already know. A drawing or sample can help resolve the remaining dimensions before an order is confirmed.
Share your requirements ↗- 01
Read C as overall width
For this profile, C is the illustrated overall width and A is the bottom width; do not exchange the two labels.
- 02
Choose the recorded option
The catalogue records A 35/B 15/C 58 and A 38/B 22.5/C 64 mm; request the exact option.
- 03
Confirm the finish
Include thickness, length and surface requirement in the enquiry; the catalogue does not establish a default finish.
03 / PRODUCTION & SUPPLY
From profile requirements
to a planned order.
Discuss manufacturing, packaging and mixed-order requirements before confirming your purchase.
Profile forming
Workshop reference. The line and setup for your selected profile are confirmed with your order.
Packaged products
Packaging and storage reference. This photograph does not represent live stock availability.
Purchasing information
The essentials for your first enquiry.
- Minimum order
- 1,000 piecesMixed-order MOQ allocation to be confirmed.
- Dispatch
- Within 20 daysStart date and schedule confirmed with the order; transit time is separate.
- Sample support
- Samples availableWe cover freight. Sample quantity and other terms are confirmed on request.
- OEM & mixed orders
- SupportedShare your customization and product combination.
04 / BUYER QUESTIONS
Before you request a quote.
Which dimension is the overall width?
C is the overall width shown for this profile. A refers to the bottom width in the recorded section.
Can I order any combination of A, B and C?
No. The two recorded combinations should be treated as separate options and confirmed before production.
Can I request a sample?
Samples are available and we cover sample freight. Confirm the product, destination, quantity and sample terms before dispatch.
Does 20 days include arrival at my destination?
No. The stated period is for dispatch. Confirm the order start date and schedule separately from transport and arrival.
