Ceiling Grid
Painted Ceiling T Grid Color Checks Before Installation
How buyers and installers keep painted T-grid face color, width and labels consistent before the ceiling is fixed.
The exposed grid is part of the finish

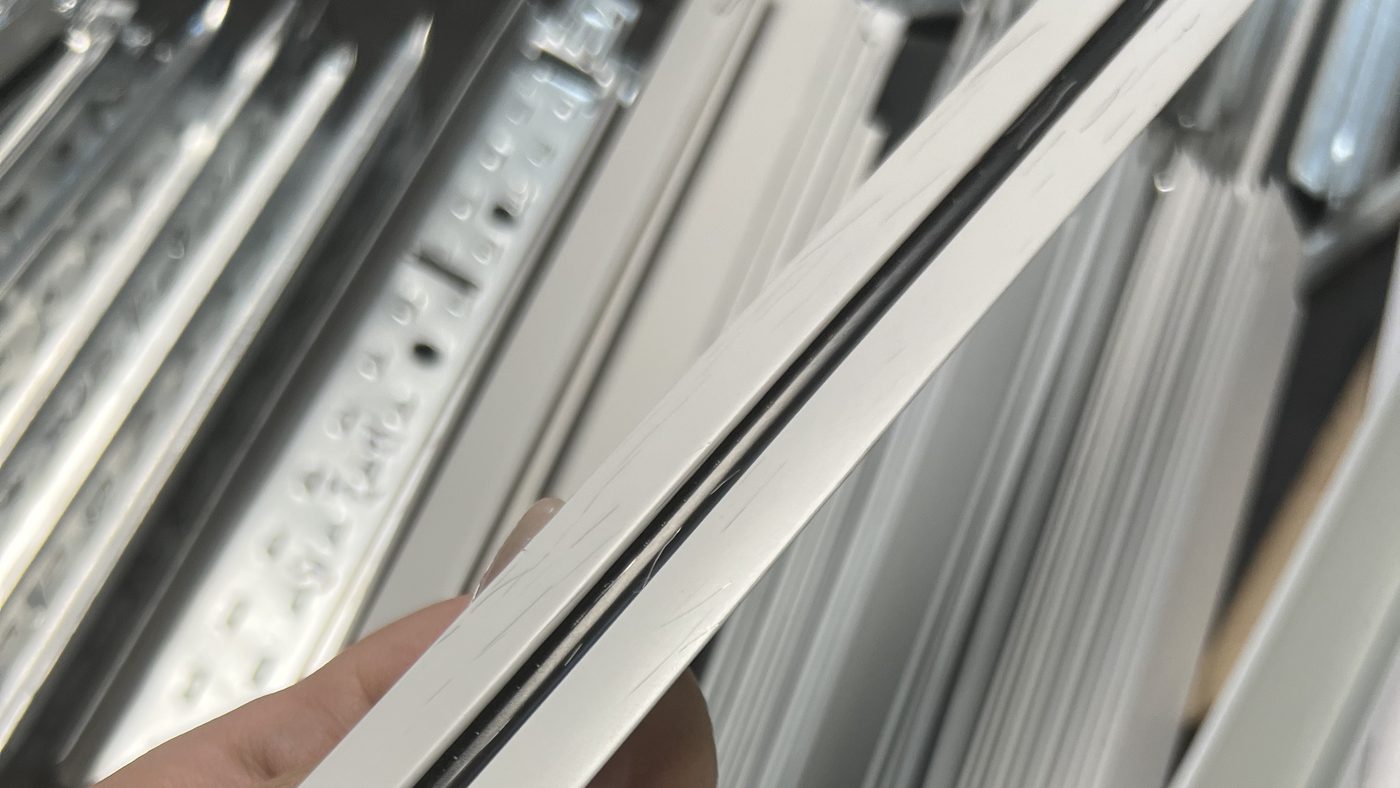

Painted ceiling T grid color checks belong early in the job, not at the last walk-through. The grid is a structural suspension package, but it is also one of the finished surfaces people see after the mineral fiber tiles are dropped in. A small color shift between a main tee and a cross tee may look harmless on a warehouse bench. Under office lighting, beside a white tile face, it can read like a repair. For distributors, contractors and project buyers, this makes color control a practical buying issue. Chengyu's website describes painted ceiling T grid as a system of main tee, cross tee and wall angle for exposed mineral fiber ceiling systems, with 15 mm and 24 mm face-width options and pre-painted white, black or custom color surfaces according to order requirements. Those details should travel together from quotation to packing list to site release.
Check color before layout becomes permanent
A ceiling crew usually starts by setting perimeter lines, fixing wall angle and building the main tee run. Once those pieces are in place, changing the visible finish is no longer a simple warehouse question. It means slowing the crew, opening more bundles, checking labels again and sometimes removing pieces that were already aligned. The better moment is before installation, when samples, bundle marks and order descriptions can still be compared calmly. The check does not have to be complicated. Put one main tee, one cross tee and one wall angle under the same light. Look at the exposed face, not only the galvanized back. Confirm whether the order is white, black or a custom color. If the project has more than one batch or more than one room phase, separate the bundles before they move into the work area. The point is to catch visible differences while the material is still easy to sort.
Face width changes how color reads
Color is not seen by itself. It is seen across a strip of metal, and that strip has a width. Chengyu supplies painted T-grid face widths of 24 mm and 15 mm. A 24 mm face gives the ceiling a stronger grid line. A 15 mm face gives a finer line, but it still needs steady finish matching because the eye follows every repeated joint across the room. This is where painted ceiling T grid color checks connect with the layout conversation. A buyer should not confirm face width in one email, color in another email and tile module in a third message without tying them together. The exposed face, the mineral fiber tile edge and the room lighting form one visual field. If the grid width changes between rooms, or if a custom color is used in only one area, the order needs clear separation before it reaches the installer.
Keep main tee, cross tee and wall angle together
Main tee, cross tee and wall angle do different work, but they meet in the same ceiling plane. The main tee sets the long line. Cross tees create the module. Wall angle frames the perimeter and often sits closest to painted walls, curtain wall pockets or bulkheads. If one component is checked carefully and another is treated as a secondary accessory, the difference can show at the edge of the room. A clean order review keeps the system together. For common 600 x 600 mm, 600 x 1200 mm, 2 x 2 ft and 2 x 4 ft ceiling layouts, the buyer should confirm the grid module, exposed face width, color and wall angle requirement in the same schedule. This is especially useful for importers stocking both white and black grid, or for contractors handling public areas and back-of-house spaces under one purchase order.
Lighting and tile choice expose small differences
Warehouse light can hide finish differences that become obvious inside a finished building. Linear office lights, daylight from a facade, retail spotlights and hospital corridor lighting all strike the grid from different angles. Mineral fiber tile surface also changes the read. A plain white board beside a white grid leaves little room for a slightly warmer or cooler strip of paint. A darker grid or custom color creates a stronger design line, so the matching has to be deliberate. Installers know this from ordinary site experience. They may not describe it as color management; they just know when a ceiling line looks mixed. A practical pre-installation check is to place the grid sample beside the selected tile sample before the bundles are released. If the project buyer is ordering both board and grid together, the check becomes easier because the visible finish can be reviewed as one suspended ceiling system instead of as separate cartons.
Labels protect color control after unloading
Good color control can still fail after the container is opened. Bundles move from truck to warehouse, from warehouse to floor, and from floor to room. If labels are vague, a site team may mix similar-looking white grid from different areas or open black grid meant for a feature ceiling too early. The metal may be physically sound and still become a coordination problem. Chengyu's product content already asks buyers to review OEM color, length, label and export packing support. For this kind of order, the label should do more than identify a product category. It should help the receiving team separate face width, color, component type and room phase when needed. That does not replace a packing list, but it gives the person standing beside the bundle a faster way to make the right move.
Put finish notes into the RFQ and release plan
The most useful RFQ language is plain. State whether the job uses 24 mm or 15 mm face width. State the color as white, black or custom color, and keep the same wording across main tee, cross tee and wall angle. State the ceiling tile module. Ask for labels and packing to separate any areas that should not be mixed. If drawings or samples are available, send them before production planning, not after the first shipment is already being prepared. Painted ceiling T grid color checks are not a decorative afterthought. They protect the rhythm of installation and the appearance of the finished ceiling. When the visible face, component set and bundle identity are confirmed before site release, the crew can spend more time building a level grid and less time deciding whether two pieces of metal were meant to share the same room.
