Ceiling T Grid Column Layout Around Bulkheads on Site
How installers plan T-grid modules, wall angle returns and lift-out tile access around columns and bulkheads.
Columns change the ceiling before tiles arrive

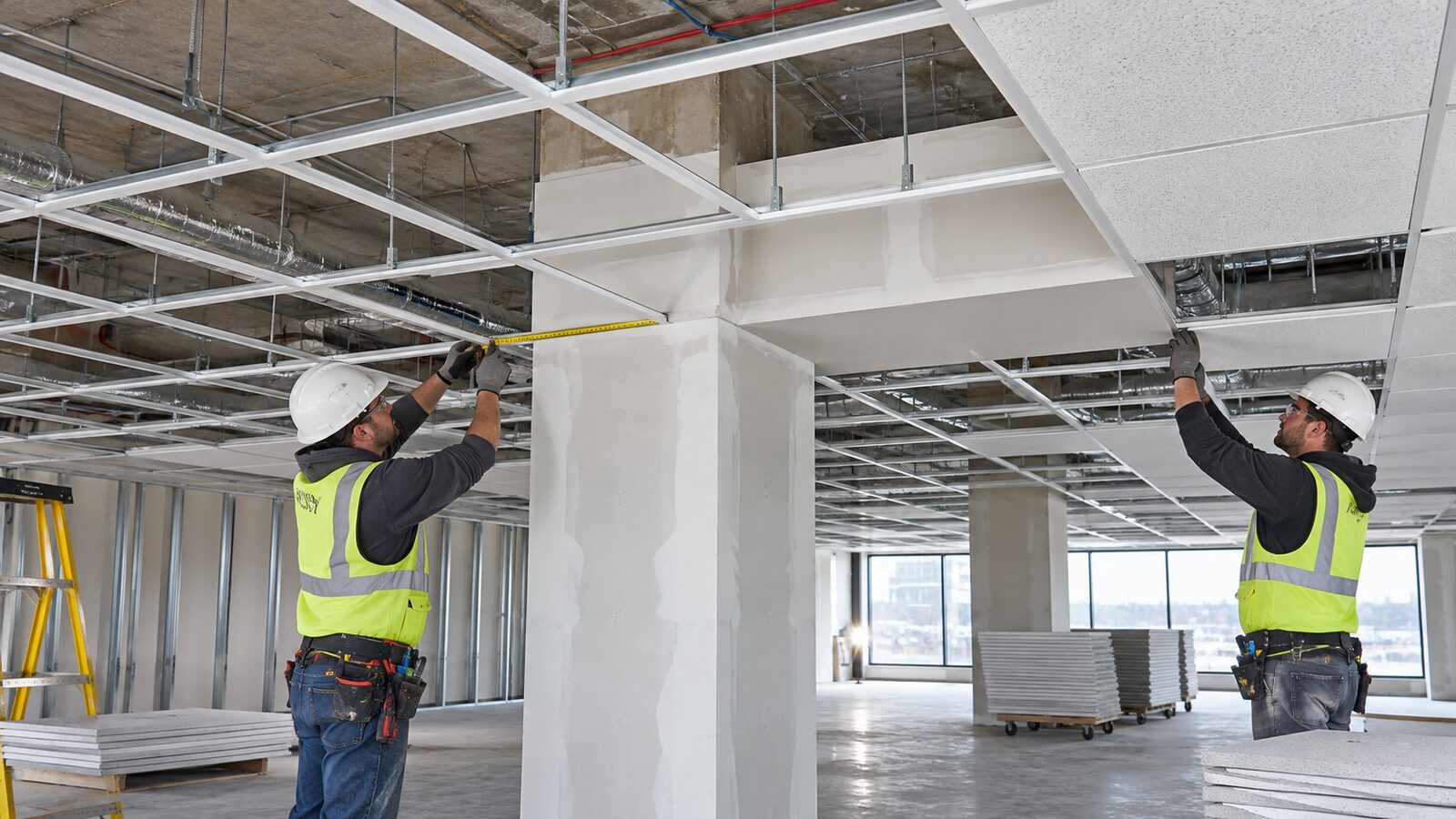

Ceiling T grid column layout is usually decided while the room still looks unfinished: main tees are partly hung, cross tees are stacked nearby, and mineral fiber boards may still be closed in cartons. That is the right time to slow down. A structural column, boxed service riser or gypsum bulkhead breaks the clean ceiling module, and the crew has to decide whether the grid will look planned or patched after the last tile is placed. Chengyu supplies painted ceiling T grid systems made from main tees, cross tees and wall angle for exposed mineral fiber ceiling systems. Common layouts include 600 x 600 mm, 600 x 1200 mm, 2 x 2 ft and 2 x 4 ft modules, with 15 mm and 24 mm face-width options. Those components give the installer a workable system. The column area still needs a site decision, because drawings rarely show every small return, cut tile and lift-out bay in enough detail.
Read the obstruction before fixing the rhythm
The first mistake is treating a column as a late cut. If the ceiling is set out from a clean wall and the main tees run forward until they hit concrete, the installer may be left with narrow tile strips, awkward cross tee pieces and a return angle that looks like an afterthought. The better sequence is to read the obstruction early, then decide how the regular module will pass, stop or shift around it. A practical walk starts with the column faces, the bulkhead edge and the nearest room sightline. Workers should look from the entrance, the corridor view and the likely occupied area, not only from the scaffold or ladder. If one side of the column will always be visible from a lobby or shopfront, that side deserves the cleaner module. Less visible faces can absorb small adjustments, as long as replacement access remains possible.
Keep main tees continuous where they can stay honest
Main tees set the ceiling's long visual line. Around a column, the crew should keep those long lines continuous wherever the structure allows it. If a main tee has to stop, the stop should make sense against a column face, bulkhead edge or planned return, not in the middle of a bay. Broken lines are easy to see after mineral fiber tiles are installed, especially under long office lighting. Continuity does not mean forcing every tee through a bad location. Sometimes a small shift in module start point gives both sides of the column wider tile pieces and cleaner cross tee intersections. The site team should test this before too many hangers and cross tees are fixed. Moving a reference line early is ordinary ceiling work. Moving it after tiles are cut is repair work.
Use wall angle returns as layout pieces
Wall angle is not only for the perimeter wall. Around boxed columns and gypsum bulkheads, short wall angle returns often create the edge that receives cut mineral fiber tiles. If those returns are measured casually, the column area can show stepped lines, open shadows or tile edges with poor support. The angle should be treated as part of the grid layout, not as trim added after the main field is complete. Installers should check the bulkhead face for straightness, confirm the ceiling height line and mark return pieces before opening tile cartons. Where the column finish is still being skimmed or painted, the crew may need a hold point. Fixing the return angle against an unfinished face can trap a later correction inside the ceiling line. A short site note is enough: return held, return released, or return adjusted to approved face.
Do not create trapped access tiles
Columns and bulkheads often sit near duct routes, pipes, cable trays or other services above the ceiling. The grid layout should leave at least some practical lift-out tiles near those service zones. A tile that technically fits but cannot be lifted because it is boxed between a column return, a diffuser frame and a narrow cut edge is not useful access. This is where ceiling T grid column layout connects with product selection. Chengyu's mineral fiber acoustic ceiling board range is used as a replaceable modular surface in exposed T grid ceilings, with square, tegular and revealed edge options. Edge detail and grid face width affect how easily a tile can be handled. Around columns, installers should avoid making the most frequently opened tile a fragile custom cut.
Separate full tiles, cuts and spare notes
Once the column zone is settled, the tile crew needs order, not a loose pile of boards. Full tiles should stay separate from column cuts, and column cuts should be marked by room or grid line. Spare tiles for future maintenance should not be confused with offcuts left from the obstruction. This sounds basic until a phased floor has several repeated columns and every cart carries similar white boards. For distributors and project buyers, the same thinking belongs in the order discussion. The inquiry should state the tile module, edge type, T grid face width, main tee and cross tee package, wall angle quantity and any room-by-room release logic. Chengyu's site data notes OEM color, profile length, label and export packing support for T grid orders, and packing labels are only useful if the project team keeps their room logic after unloading.
Record the column decision before the room repeats
Many commercial interiors repeat the same column bay again and again. If the first bay is solved by one installer and never recorded, the next crew may solve it differently. A simple record should show main tee direction, module start point, return angle condition, full-tile side, cut-tile side and planned lift-out access. Photos can help, but the written note should name the room or column line plainly. Ceiling T grid column layout is not a decorative drawing exercise. It is a field decision that protects the regular ceiling module when the building structure interrupts it. When main tees stay readable, wall angle returns are treated as layout pieces, and access tiles remain usable, the finished mineral fiber ceiling looks calmer and is easier to maintain after handover.
