Specification Control
Mineral Fiber Tile Edge Terms for Clearer Ceiling Orders
A practical order-review method for naming mineral fiber tile edge profiles and linking them to the correct exposed T-grid before supply is released.
The edge is more than a catalogue picture
When an exposed ceiling is described as ‘600 x 600 mineral fiber board’, the description is not yet complete. Two tiles can share a module and a white surface while presenting a different line where the board meets the grid. For a distributor preparing a mixed ceiling order, mineral fiber tile edge terms are therefore practical order information, not decorative language for a brochure. Chengyu lists square, tegular and revealed edge options for mineral fiber ceiling board. Each should be read together with the selected T-grid, because the board edge and visible grid face create the finished ceiling joint. A buyer who records the edge early gives the installer a clear reference and gives the receiving team a better way to separate similar cartons.
Start with a named edge sample
Put a physical sample, or a confirmed product detail, in front of the person writing the order. A square-edge tile has a direct, level perimeter. Tegular and revealed edges introduce a stepped or recessed visual relationship at the exposed grid. Names used locally can vary, so an internal nickname such as ‘drop edge’ is not enough for an export order unless it is tied to an approved sample, drawing or product reference. The review works best when the tile is laid against a short length of the proposed main tee or cross tee. Look at the joint from normal room height, then turn the tile and check all four sides. This is not a field-performance test. It is a quick identity check that catches the common mistake of approving a face pattern while leaving the actual edge profile open to interpretation.
Keep module and edge as separate order fields
Tile module and tile edge solve different questions. Chengyu’s mineral fiber information includes common 595 x 595 mm, 600 x 600 mm, 603 x 603 mm and 600 x 1200 mm options, alongside the edge choices. A 600 x 600 mm line does not tell a warehouse picker which edge should be supplied; similarly, ‘tegular’ does not establish the intended module. Use separate fields in the enquiry and purchase order: tile model or pattern, nominal module, edge profile, thickness where specified, and the matching T-grid. If a project has more than one ceiling zone, identify the destination room or drawing reference as well. That format is easier to check than one long product description and avoids relying on a photo file whose name may not travel with the cartons.
Review the exposed grid at the same time
An edge profile only makes sense in the system it will sit in. Chengyu’s painted ceiling T-grid range uses main tees, cross tees and wall angle to form modular exposed-grid ceilings, with face-width options including 24 mm and 14.5 mm. The visible grid face changes how the tile edge is read, so it should appear beside the edge profile in the approval record. This does not mean one edge automatically requires one face width. The room layout, project design and selected product details still control that decision. It does mean the buyer should avoid pairing a tile image from one sample board with an unrelated grid description in the order. Where the tiles and grid are purchased together, describe both items in the same ceiling-zone schedule.
Use a small ceiling-zone schedule before release
A workable schedule can fit on one page. For each zone, list the room reference, tile module, edge term, pattern or model, grid face width, main-tee and cross-tee arrangement, wall angle, and any packing or label request. Attach the approved sample image or drawing reference rather than embedding an unlabelled photo in an email chain. That helps a distributor match the site request to a warehouse release and gives the contractor a record to carry into installation. Where future service access is expected, add that coordination note separately. Mineral fiber boards in an exposed T-grid ceiling can be lifted out for access above the ceiling, but the order description should not promise a particular access result for every room. Service locations, local installation requirements and project drawings still need their own review.

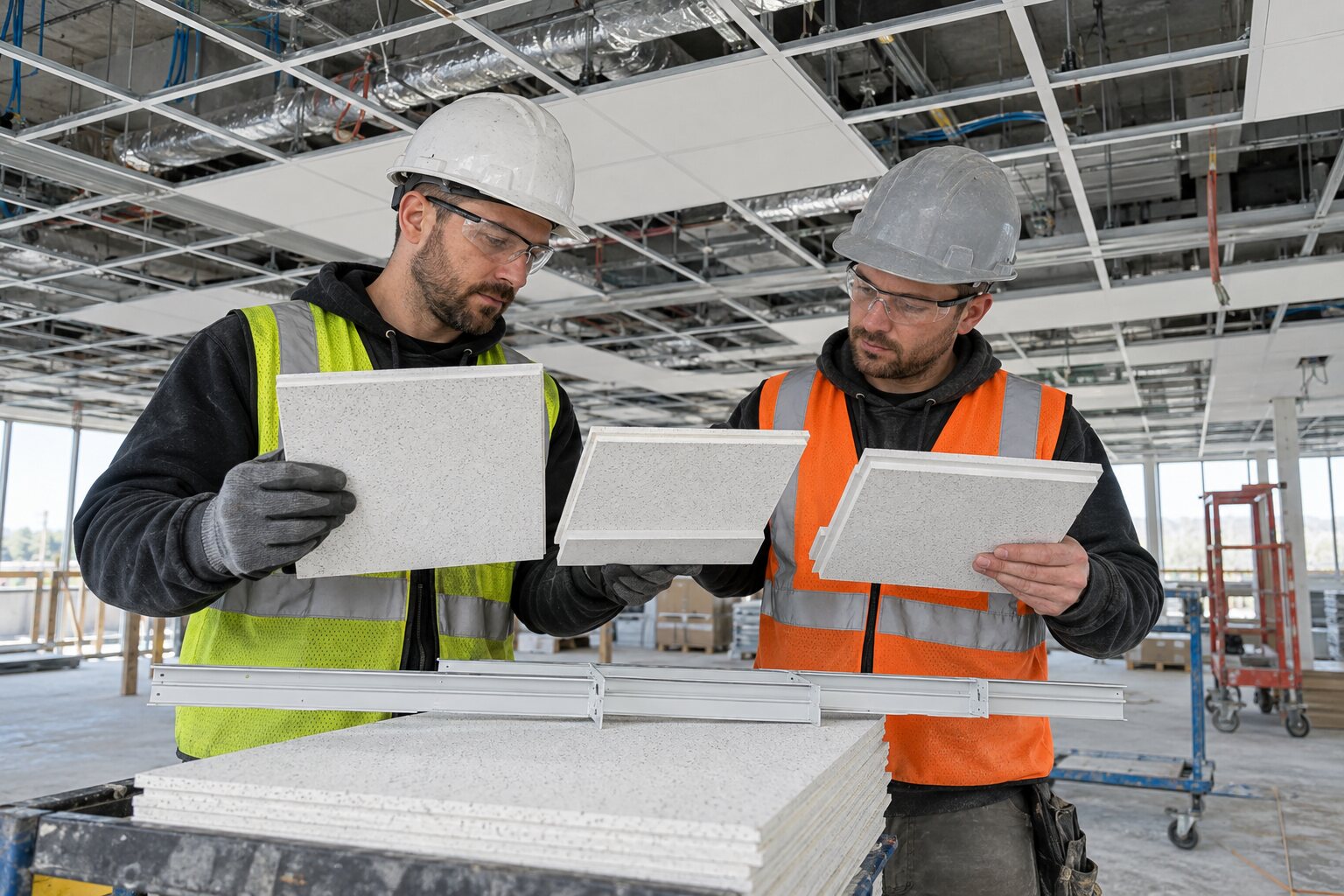

Check the first cartons against the record
When the first cartons reach the site or distribution warehouse, compare one board with the approved edge reference before loose tiles are spread through the room. Confirm the module and face as well as the edge. Then place the sample on the intended grid section to make sure the receiving team is looking at the correct ceiling package, not merely a similar white board from another order line. Keep the check modest and traceable: carton identity, edge profile, module and designated ceiling zone. If something differs, hold that package for clarification instead of trying to solve it after several bays are installed. This approach is especially useful on projects that combine square-edge rooms with tegular or revealed-edge feature zones.
Make the wording survive handoffs
The useful test of mineral fiber tile edge terms is whether the same words still make sense to the buyer, supplier, warehouse team and installer. A clean line such as ‘600 x 600 mm mineral fiber board, tegular edge, specified pattern, matching 24 mm exposed T-grid’ is much stronger than ‘ceiling tile as sample’. Add the approved reference and any label requirement, then keep the wording consistent on the order, packing list and zone schedule. Clear edge terminology will not replace project coordination, but it removes one avoidable ambiguity from an exposed ceiling order. By naming the module, edge and matching grid together, overseas buyers can make the first delivery easier to inspect and the installed ceiling easier to recognise.
